Evolution Never Stops Speed and Stability Coexist
Ultra-High-Speed

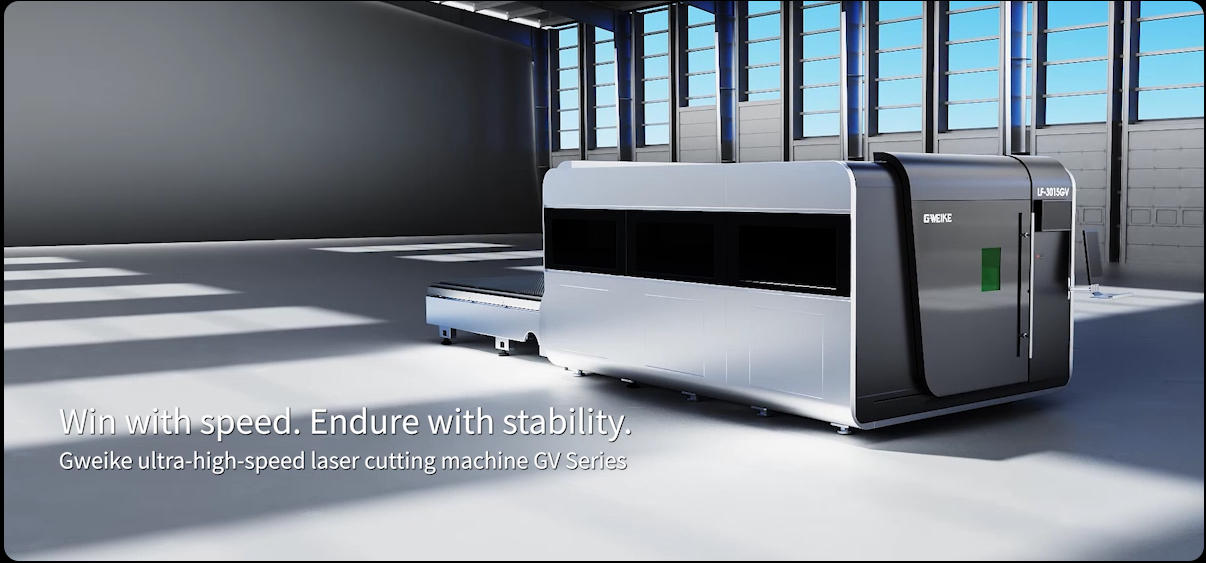

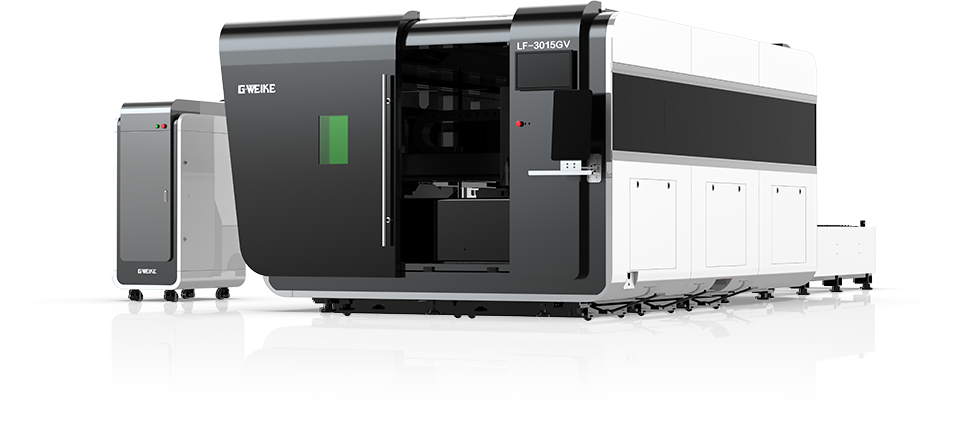

Laser Plate Cutting Machine
Born for Speed High-Speed Frontrunner
he optimized combination of 3G acceleration and 10 Hz low-pass filtering
delivers blistering rapid traverse performance up to 200 m/min, enabling
fast start-stop and ultra-precise high-speed movement.
Max Acceleration
0
G
Max Acceleration
0
G
Max Acceleration
0
m
Optimized Paths Superior Efficiency
Intelligently optimizes corner cutting paths to reduce idle travel and ineffective movement, boosting overall processing efficiency
by over 50%. Efficiency gains become even more pronounced with complex geometries, allowing you to handle urgent orders with ease.
German-Engineered Structure Stable and Reliable
Core components utilize a German-engineered structural design. From the machine bed to the beam and transmission system,
every detail provides robust support for long-term, high-precision, stable operation.
German-Style Bionic Hollow Honeycomb Beam
Featuring a high specific stiffness design via topology
optimization, the beam delivers an 18% increase in torsional
stiffness at the same weight and a 25% weight reduction
at the same stiffness, ensuring outstanding stability during
high-speed operation.
Max Acceleration
0
%
Max Acceleration
0
%
Low-Center-of-Gravity Integrated Welded Heavy-Duty Bed
Low-center-of-gravity bed design with widened side ribs on both sides significantly enhances bending and torsion resistance. Combined with a mortise-and-tenon structure integral welding process, it eliminates micro-deformation caused by stress release, providing a solid foundation for high-speed cutting.

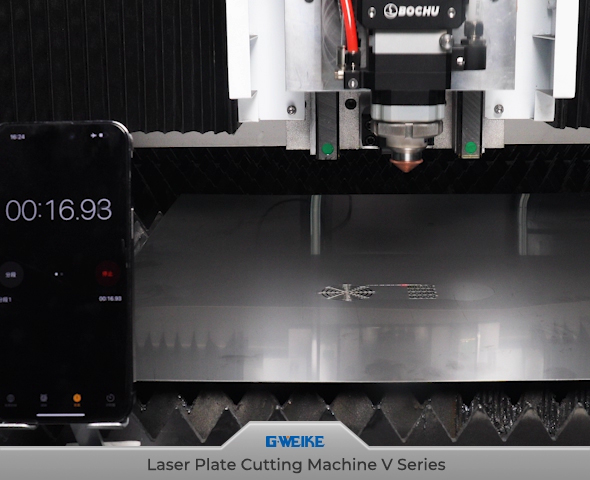

BLT Intelligent Laser Cutting Head
Narrower kerf, smaller heat-affected zone. A unique full-body water-cooling design covers over 90% of the optical path, effectively suppressing thermal stress deformation of the lens and ensuring consistent beam quality during continuous processing.
Full-body water-cooling design covers over of the optical path
0
%
High-Speed High-Torque Servo Motor
With up to 300% torque output, 5000 rpm peak speed, and 136.6 kg·cm² of rotor inertia, this high-speed servo motor delivers instantaneous,
precise response to the most complex cutting path variations.
Max Acceleration
0
G
Max Acceleration
0
G
Max Acceleration
0
m
German-Style Integrated Design Reducer
The output shaft, and gear are integrated and optimized. Key components are made of 42CrMo alloy steel ,
significantly improving the overall rigidity, wear resistance and service life of the transmission system.
German-Style Integrated Design Reducer
The output shaft, and gear are integrated and optimized. Key components are made of 42CrMo alloy steel ,
significantly improving the overall rigidity, wear resistance and service life of the transmission system.

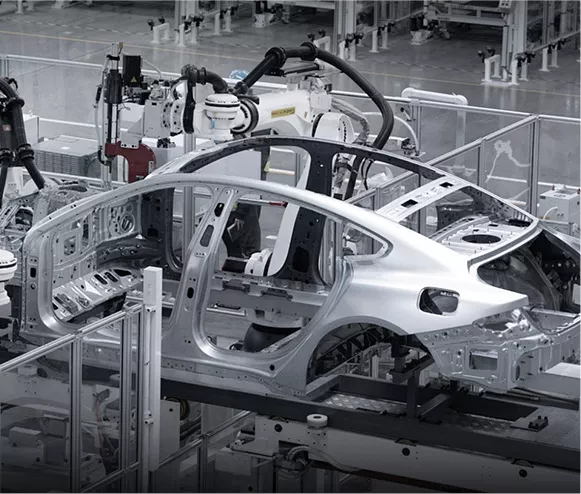

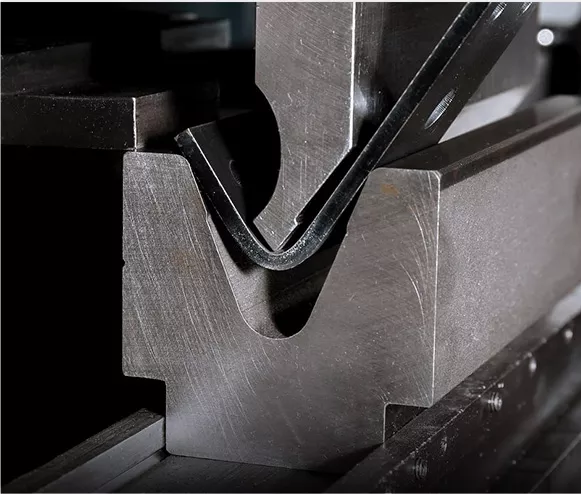

Application Industries
Equipment Specifications
